With FastConnect, we offer an innovative quick connection plug that significantly simplifies the installation of our luminaires.
The FC version of the luminaires can be connected from the outside without having to open them up for wiring and mounting, which is a real pain.
This not only makes installation easier and safer, but also much faster. The time saved directly leads to lower installation costs. At the same time, installers benefit from a more pleasant workflow, as only a few steps are required.
Highspeed – installation is this fast:
.png) Screw on mounting clamps | .png) Click in the light fitting | .png) Connect – Done! |
LUXANO 2 FC
The LUXANO 2 comes with retaining clips as standard, and the diffuser and housing are held together with two stretch tubes. Before installation, the installer must therefore remove the stretch hoses, remove the diffuser, dismantle the gear tray, insert the cable into the luminaire, connect it to the terminal, install the gear tray, attach the individual retaining clips to the luminaire, replace the diffuser and close the retaining clips – a very time-consuming process. The installation itself is then carried out using the sliding retaining clips of our FastFix quick installation system.
Advantages of the FC version:
- Fully pre-assembled luminaire
- No opening required for installation
- Mechanical damage to electronic components during installation is prevented
- Prevention of dust and dirt entering the interior of the luminaire from the installation environment
- External connection via FastConnect quick connection plug
- Ergonomic installation – a few simple steps
- Mounting time advantage > 50%
- Noticeable cost advantage

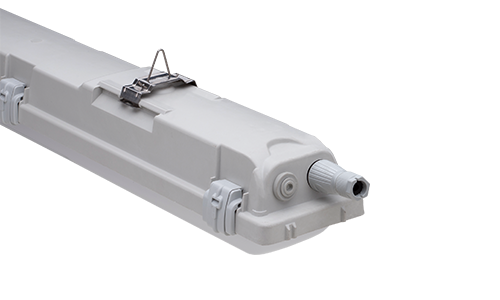

PROXIMA FC
The PROXIMA is supplied with pre-closed retaining clips as standard.
To install, the installer opens all retaining clips (particularly easy thanks to multi-part toggle levers), removes the diffuser, dismantles the device carrier, feeds the cable into the luminaire, connects it to the terminal, installs the device carrier with the fall protection device and replaces the diffuser.Finally, the clamps are closed again. Here too, installation is carried out using the retaining clips of the FastFix quick-mounting system, which allow variable mounting distances.
Advantages of the FC version:
- Fully pre-assembled luminaire
- No opening required for installation
- Quick opening and closing – no need for a toggle clamp lever
- Mechanical damage to electronic components during assembly is prevented
- Prevention of dust and dirt ingress from the installation environment into the interior of the luminaire
- External connection via FastConnect quick connection plug
- Time and cost savings > 50%
- Ergonomic installation – a few simple steps

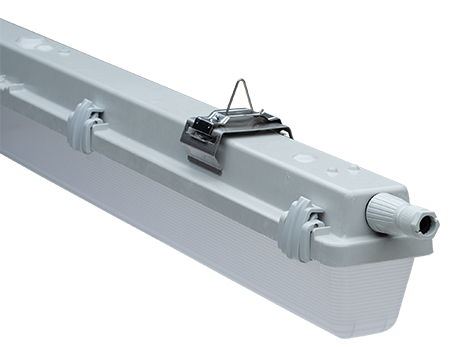

161 FF/FC
The standard version of the 161 is supplied with closed retaining clips.
To install, the fitter opens all the retaining clips, removes the diffuser, dismantles the gear tray, attaches the luminaire to the ceiling, feeds the cable into the luminaire, connects it to the terminal, installs the gear tray with the fall protection device and replaces the diffuser. Finally, the clamps are closed again.
Advantages of the FC version:
- Fully pre-assembled luminaire
- No opening required for installation thanks to pre-assembled FastFix adapter
- Luminaire mounting from the outside using mounting clamps
- Mechanical damage to electronic components during assembly is prevented
- Prevention of dust and dirt ingress from the installation environment into the interior of the luminaire
- External connection via FastConnect quick connection plug
- Time and cost savings compared to the basic version > 60%
- Ergonomic installation – a few simple steps
