Radio-based light management
system for industrial areas



In many areas of an industrial or commercial enterprise, there is considerable potential for saving energy. By using new technology, a lot can usually be achieved here - especially in lighting systems. This is how intelligently controlled LED lighting performs from the start to a noticeable reduction in costs and, in the sense of a sustainable corporate management, to a significant reduction in CO2 emissions.

With the radio-based LIMAS Air light management system, you can now make your lighting system smart in no time at all, easily and without any additional installation work.

Main features

The lights equipped with LIMAS Air communicate via a radio-based mesh network. Mesh networks organize themselves decentrally and are „self-healing” - should a luminaire/ component fail, the communication takes place automatically via a functioning „neighbor”. This mode of operation ensures a high level of reliability for the entire system.

By integrating various sensors, the lights are controlled efficiently and according to requirements, which leads to significantly reduced operating times and thus also to considerable cost savings. In addition, the service life time of the luminaires is extended.

It is not uncommon for production processes to change, and as a result, lighting requirements as well. If industrial interior areas are used differently, the lighting systems must also be adapted to the new visual tasks. The LIMAS Air light management system offers a high degree of flexibility and enables quick adaptation to new requirements.

TRIANO disc mit LIMAS Air Funkmodul

Advantages

 Modular
 Tailor-made and expandable
 Comfortable
 Flexible
 Easily controllable
 Reliable
 Future-proof
 Sustainable and cost-efficient  reduction of energy consumption and thus reduced CO2 emissions

Functionality

SCHUCH high-bay light fittings in DIMD version can be interconnected by using the LIMAS Air radio module. The radio module can be connected quickly and easily to all DIMD high-bay light fittings by means of a FastConnect connection (Plug & Play).

LIMAS Air is also available for our dust- and waterproof light fittings. In this case, no additional radio module is required. All components needed for an interconnected lighting environment are already included in the luminaire itself. This innovative integration offers the highest level of convenience and efficiency without compromising on quality.

Networking through the LIMAS Air radio module or the integrated radio capability  in our dust- and waterproof light fittings eliminates the need for additional wiring, saving not only effort but also valuable time and money. The lighting installation is thus made intelligent and flexible without the complexity of additional wiring.

LIMAS Air opened the door to modern control options and created a smart environment for lighting requirements. Based on CASAMBI® radio technology and the Bluetooth radio standard, the lighting system can be reliably  controlled with low power consumption and a long range.

If DALI light fittings with a CASAMBI® radio module are already part of an existing system, they can also be integrated. Using the free CASAMBI® app, the system  is set up simply and intuitively via smartphone or tablet. Various sensors (e.g. motion- or daylight-dependent)  and actuators (e.g. push-buttons) specially developed for the industry can be integrated accordingly and grouped flexibly. - An overall comfortable and user-friendly control system.



Areas of application

Einsatzbereiche Industrie

Industry

Einsatzbereiche Parkhäuser

Parking garages

Einsatzbereiche Gewerbe

Commercial enterprises

Einsatzbereiche Produktion

Production halls

Einsatzbereiche Lager

Warehouses & logistics

Features

 Up to 250 participants (luminaires, pushbuttons and sensors) in one mesh network
 Different usage scenarios programmable  if requirements change, easy and quick regrouping
 Daylight-dependent control
 Control via motion detection
 Animations can be realized (sequence of scenes or transition between scenes)
 Calendar and timer function
 Integration of battery- and wireless EnOcean pushbuttons
 Integration of conventional pushbuttons
 User-friendly user interface with floor plan display and location display of luminaires and components
 Readout of luminaire data (energy consumption, device version, dimming curve, etc.)
 Monitoring of the system with automatic failure notification
 Optional solution with gateway for central control and monitoring of the lighting system
 LIMAS Air lighting installation can be combined and controlled with wired DALI luminaires using the LIMAS Line PRO system

LIMAS Air Features

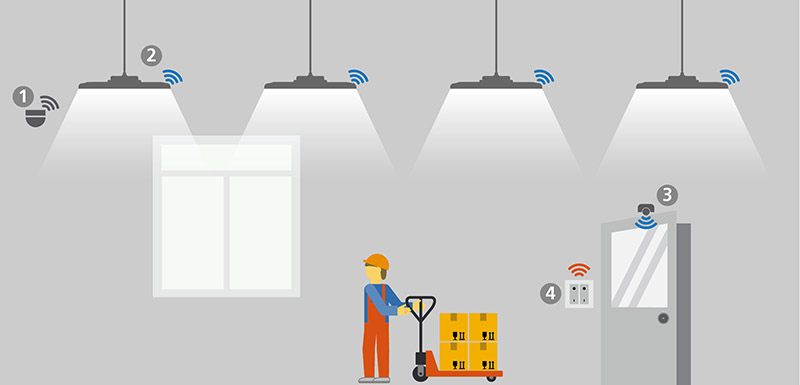

For an optimal lighting level and associated maximum energy savings, the motion detector and daylight sensor should always becombined. By a pushbutton the lighting can be manually overridden/ switched at any time.

Eins Daylight sensor
Zwei Luminaire with LIMAS Air
Drei Motion detector
Vier Pushbutton
Presence detection
Bewegungsmelder LIMAS Air



The motion detector ensures that the lighting is only switched on when people or objects with a temperature difference to the surroundings are present. In case of absence, the lighting is either completely switched off or dimmed to a preset level (such as 10%).

Daylight control
Tageslichtsensor - wenig Sonne



Depending on the amount of daylight, the light sensor dims the lighting to the desired level.

Tageslichtsensor - viel Sonne

When there is sufficient daylight the sensor switches the lighting completely off.

Tageslichtsensor - keine Sonne

At night, when no daylight is available, the lighting is set to 100% or to a different preset level.

The smarter the lighting system, the greater the savings.
If luminaires are only switched on when they are needed, this has many advantages: energy costs are reduced, CO2 emissions are lowered, resources are saved and the service life time of the luminaires is extended. The more concretely the duration and the intensity of need for artificial light are defined, the better the efficiency potential of LED lighting can be exploited.

Time management
Time Management



The light fittings are switched on continuously in the production hall during the entire operating time.

 Minor savings, as the luminaires are only switched off outside working hours.

Presence detection
Presence detection



Motion detectors capture the presence of people in the production facility. During breaks or when no movement is detected, the lighting remains switched off.

 Increased savings as the light system is controlled according to demand during working hours.

Daylight
Dayligh



Daylight sensors measure the brightness in the production hall. This varies due to incident sunlight during the course of the day. The entire lighting system is continuously adapted to this and dimmed accordingly.

 Optimum savings, as each luminaire only provides as much artificial light as necessary.
