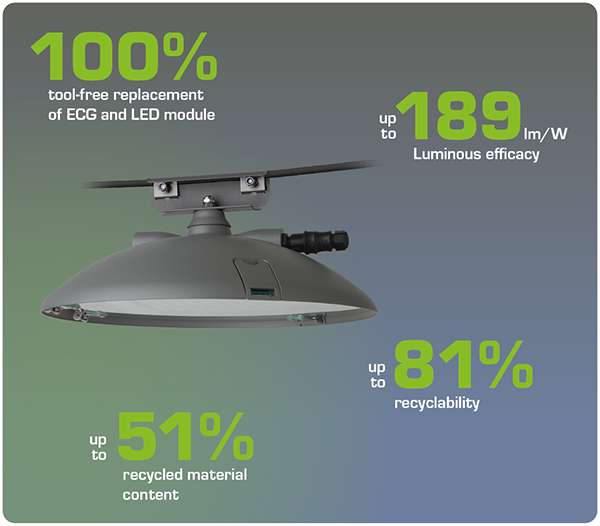

Maintaining and repairing rope-supported light fittings poses a particular challenge. However, long traffic disruptions or even road closures can be avoided. The REDONDO rope-supported light fitting makes this possible! Thanks to its unique design, components can be replaced in seconds.
Advantages at a glance
- long-lasting, corrosion-resistant die-cast aluminium housing with smooth surface without cooling fins
- integrated pressure equalisation system for defined ‘breathing’ prevents condensation from forming inside the luminaire
- completely tool-free exchange of LED board and ECG
- universal usage on crosswise, lengthwise and inclined ropes or 3-point rope supports (see "Optional accessories")
- homogenous illumination due to Multi-Layer Technology, i.e. every individual LED illuminates the whole surface, the light distribution curves of the LED are overlapping
- no light emission into the upper half space, ULOR=0
- versions dimmable to 10% and with color temperature up to 3,000 K comply with Dark Sky requirements
- interchangeable components
- future proof by using standardised Zhaga LED modules
TOOL-FREE COMPONENT EXCHANGE
In municipal street lighting, installation, maintenance and troubleshooting are particularly time-critical tasks. They affect traffic and can lead to half-lane closures, not to mention the risks for installation personnel. These tasks should therefore be carried out as quickly as possible to minimise costs.
The REDONDO impresses with both its elegant design and its maximum ease of maintenance. Thanks to its unique design, components can be replaced without tools in seconds – maximum speed, minimum disruption!
- disconnect the FastConnect quick connection plug.
- open the luminaire without tools using the two toggle levers
- comfortable folding down of the luminaire cover
- release and fold down the device carrier without tools
- Disconnect the plug connection
- release and fold down the device carrier without tools
- easy removal and replacement of LED carriers
